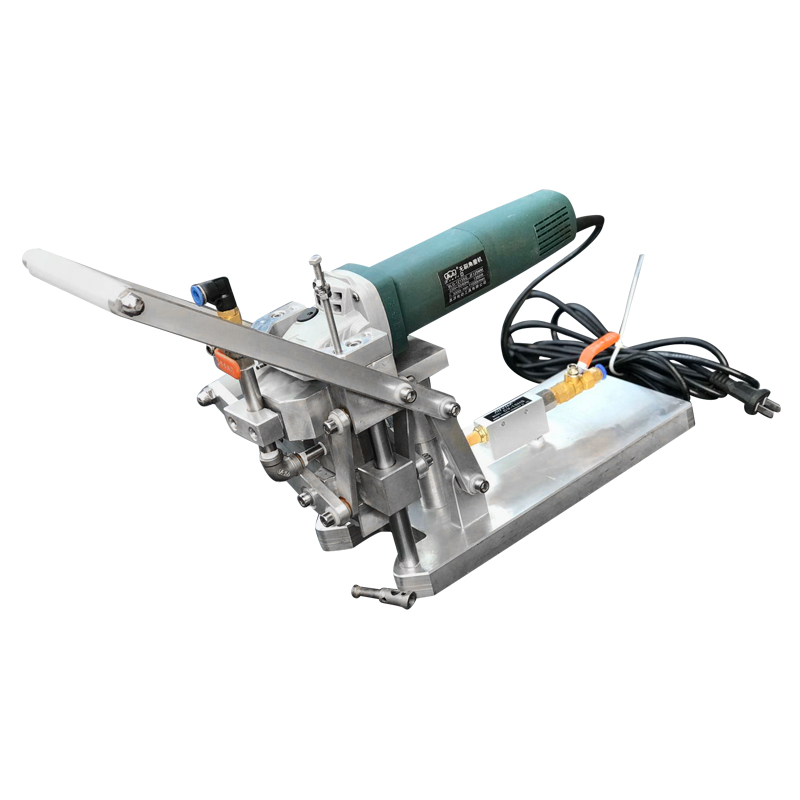

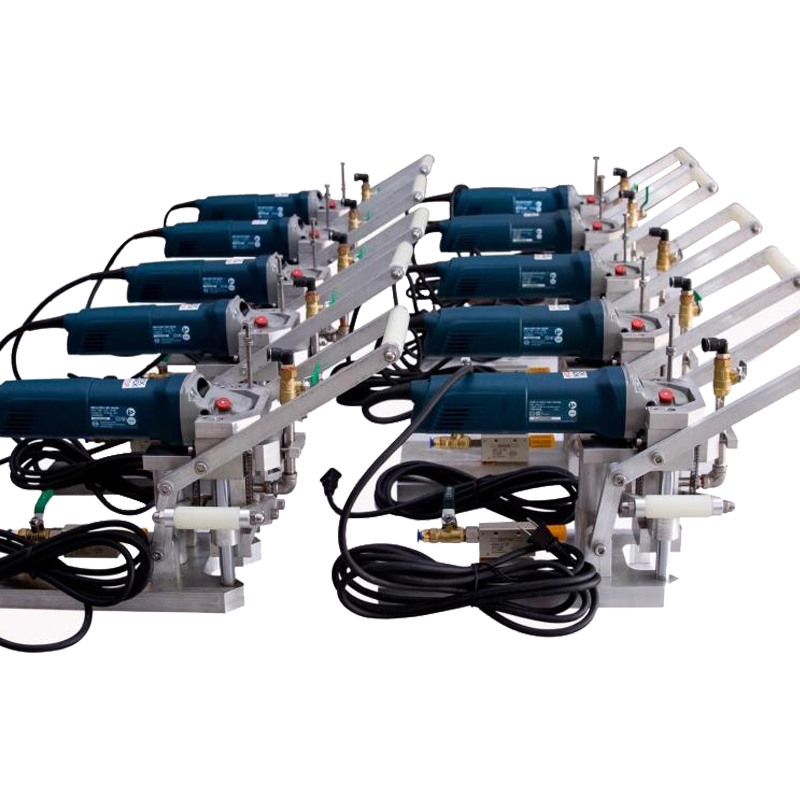

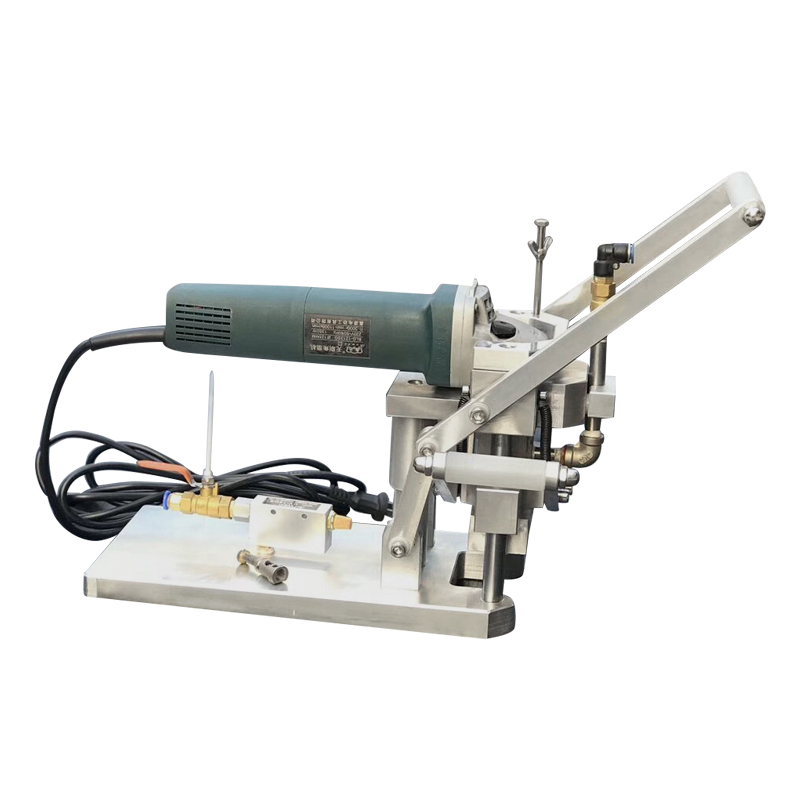

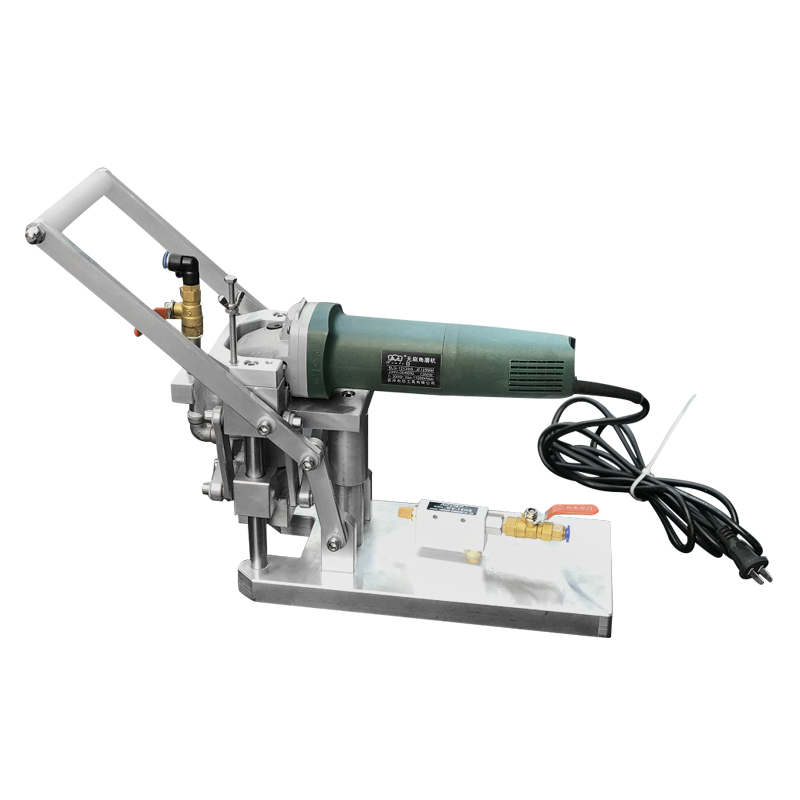

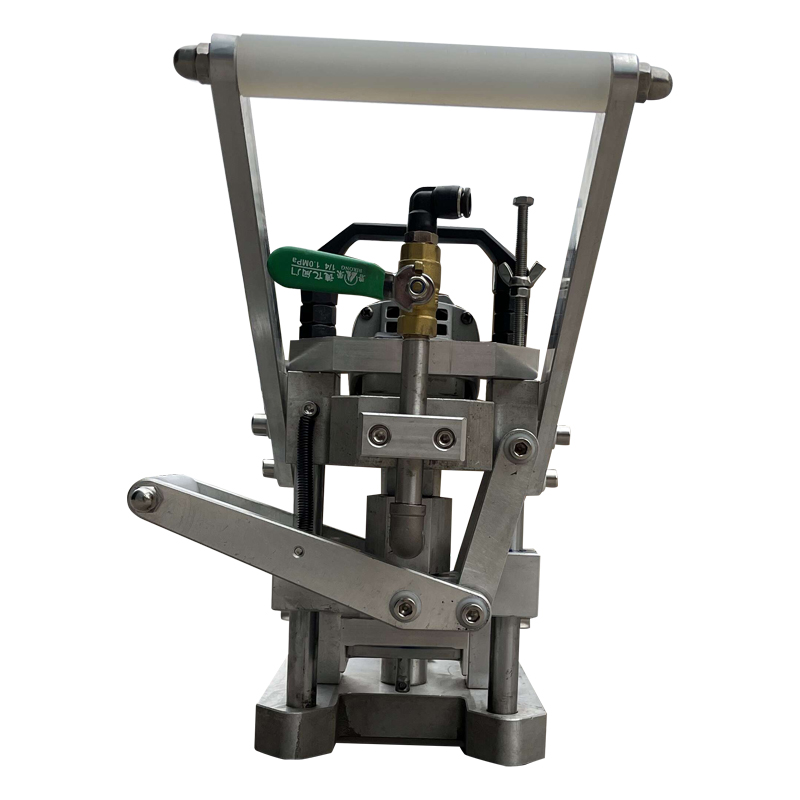

VTDM-P02 Undercut Drilling Machine for Stone and Ceramic Tiles

Product Name: VTDM-P02 Undercut Drilling Machine for Stone and Ceramic Tiles

Model No.: VTDM-P02

Application: This undercut machine works with sintered drill bit, has fast drilling   speed, and easy to operate, durable with long lifespan. The weight of the machine     is   light, convenient and flexible to be carried in the factory and on the site.

Product Type: Undercut Machine, Undercut Hole Machine, Stone Drilling Machine

Technical Parameters:

Name	Unit	Parameters
Drilling Diameter	mm	M7, M9, M11, M13
Drilling Depth	mm	5-20
Dimension (LxWxH)	mm	550x250x350
Total Weight	kg	10
Electric Voltage	V	220
Revolutions	r/min	11000
Motor Power	W	1350
