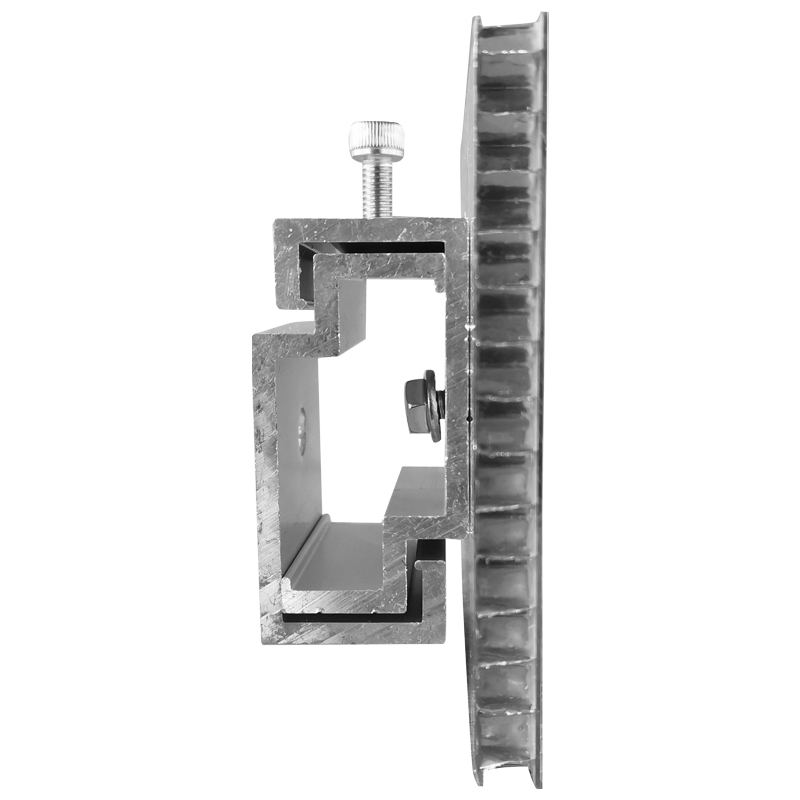

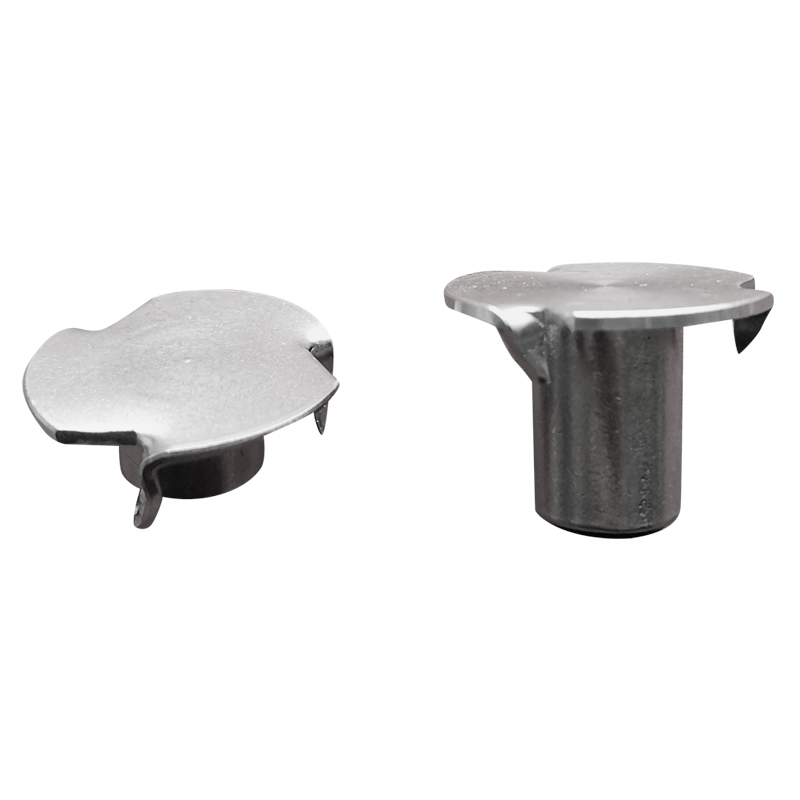

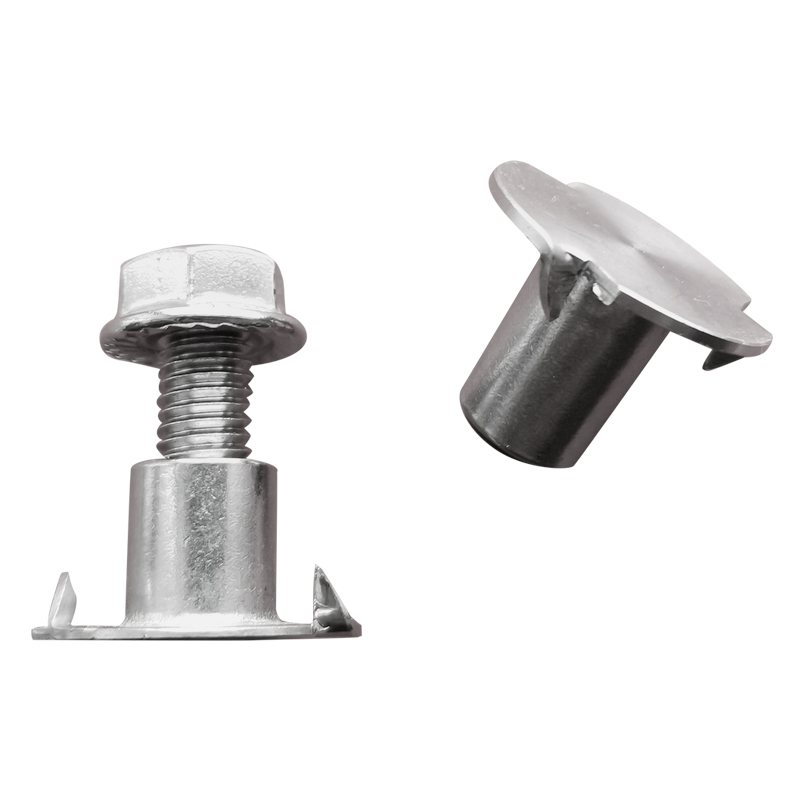

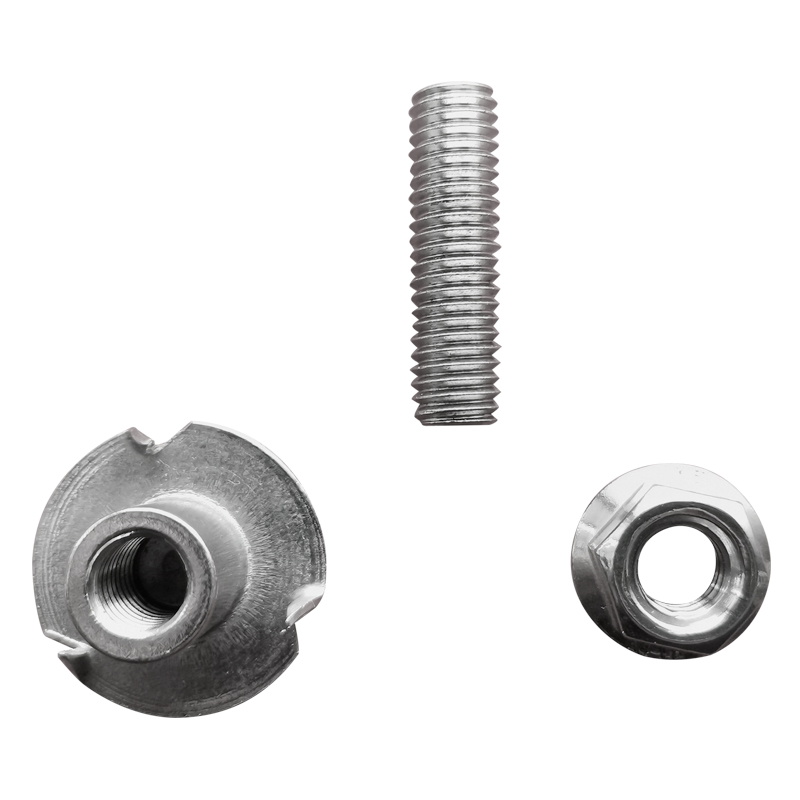

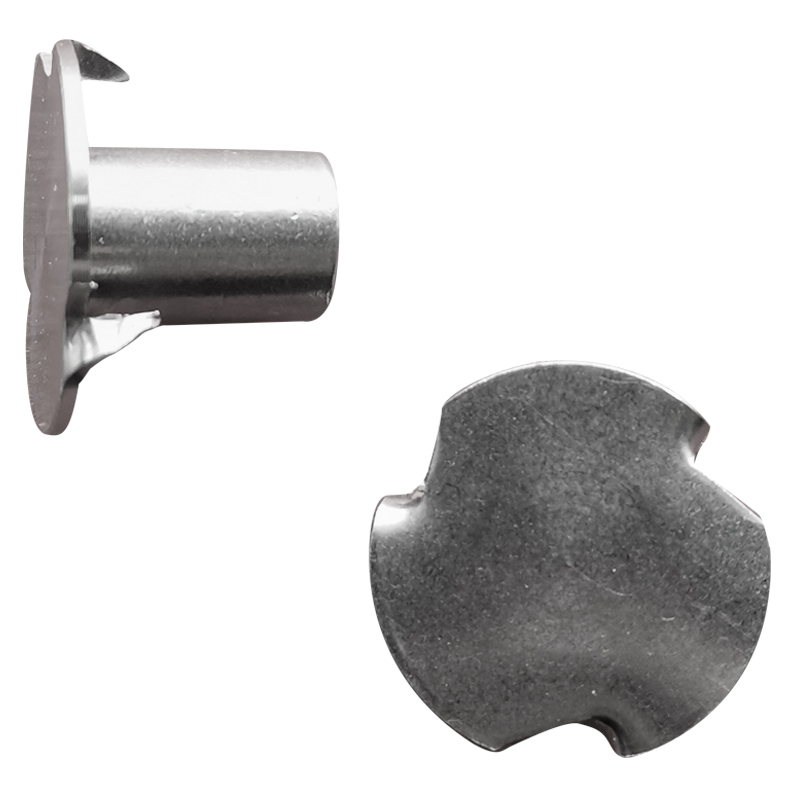

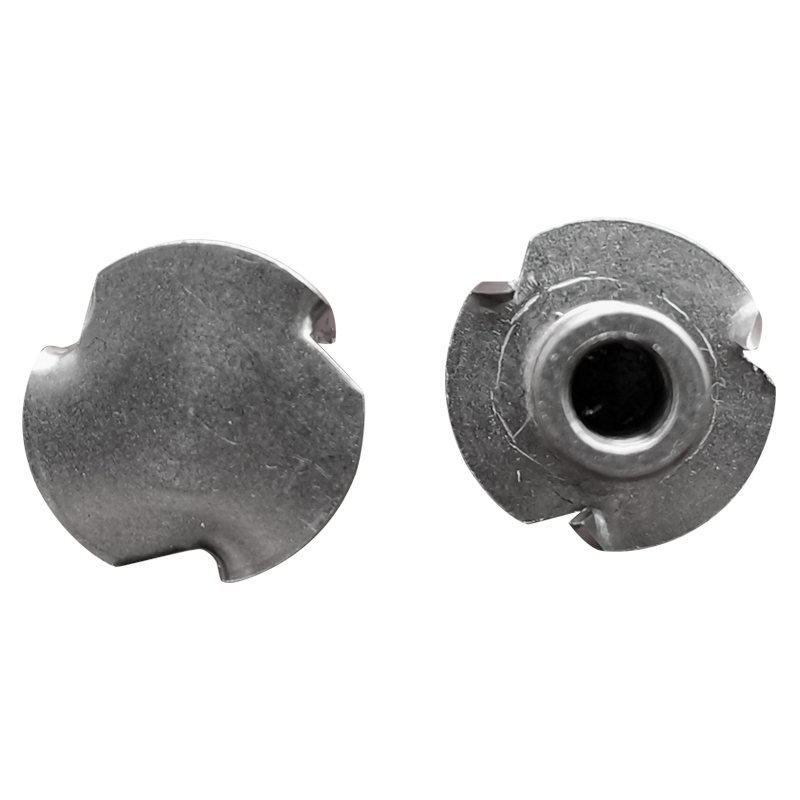

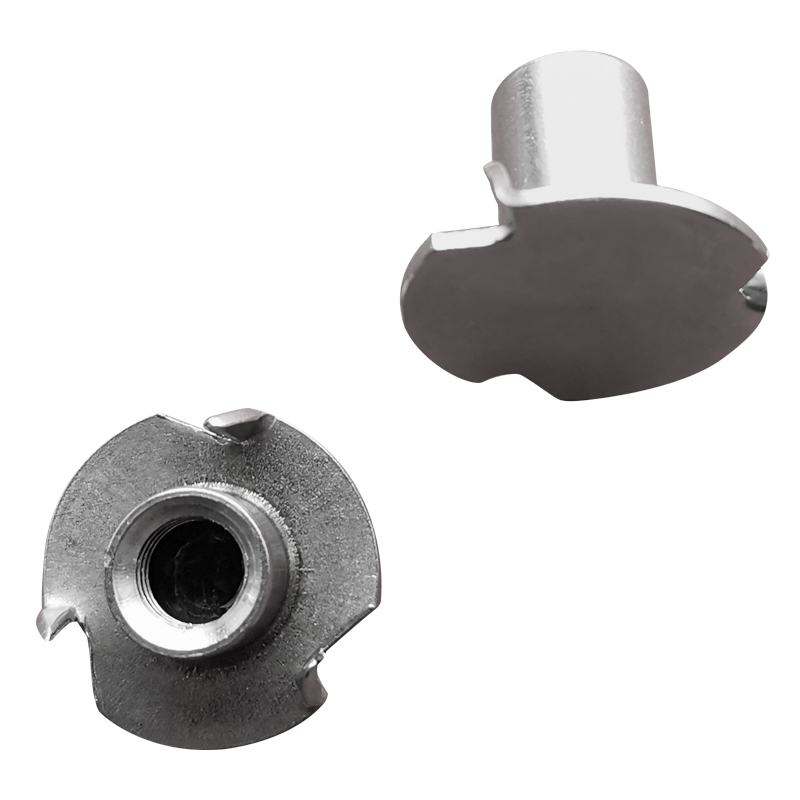

Sunk Nut for Aluminum Honeycomb Composite Panel

Application: Sunk nut is designed and made to fix honeycomb compiste panels for wall cladding projects.

Benefits:
1. with claw design, makes it fixed to honeycomb composite panels more firmly, avoiding from rotation and loosenness.

2. Embeded before the composition of panels, makes the panels more secure for cladding.

3.   After installation, the finish surface and aluminium surface are at the same level, is conductive to transportation.

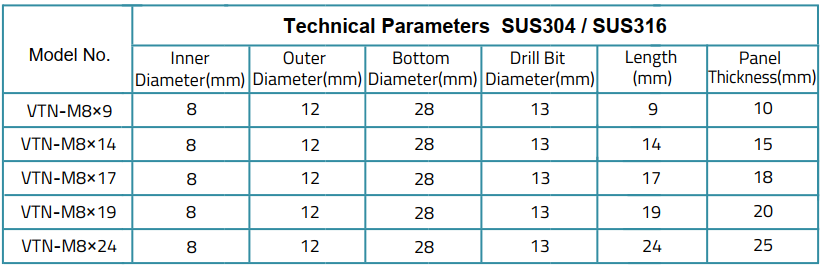

Technical Parameters:

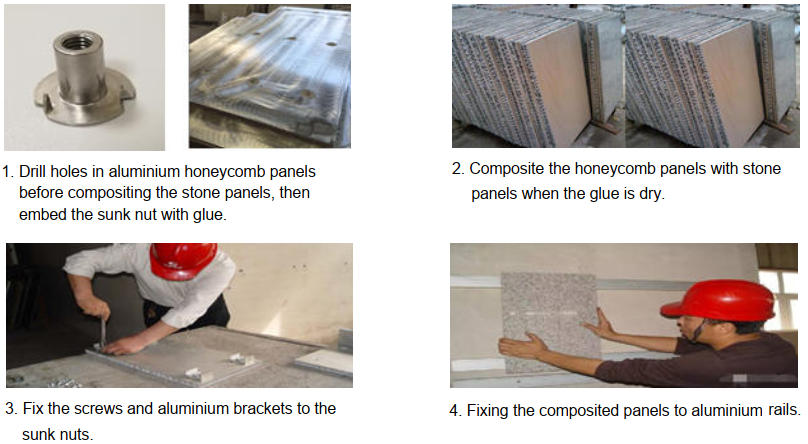

Installation Steps:
