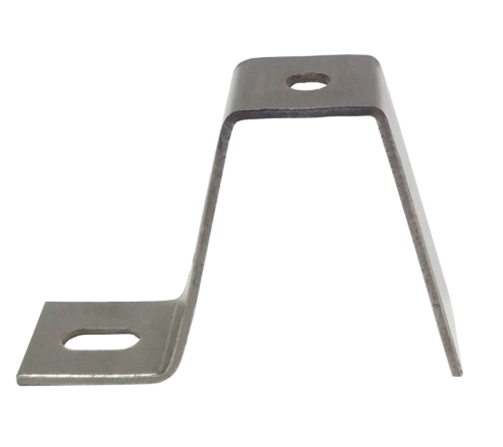

Z Fixing Anchor VTZ-04
Z Anchor fixing system is used to fix wall cladding of granite, marble, and other tiles.
Material: SS304, SS316.
Specification: 30mm*40mm*3mm, or Customized.
Quality: Strictly use standard stainless steel materials.
Benefits:
1. Suitable for all kinds of walls,cavity between 40-200mm.
Directly fixed into walls with expansion bolts.
Indirectly fixed into U-channel system with bolts.
2. Horizontal joints installation.
The anchors fix and carry on the top and bottom edges of granite / marble tiles, restraining against wind suction and pressure.
3. Vertical joints installation.
The anchors fix and carry on the left and right edges of granite / marble tiles, restraining against wind suction and pressure.
4. Three dimension adjustability.
Allows quick and easy installation to restrain against wind pressure and quake-proof.
