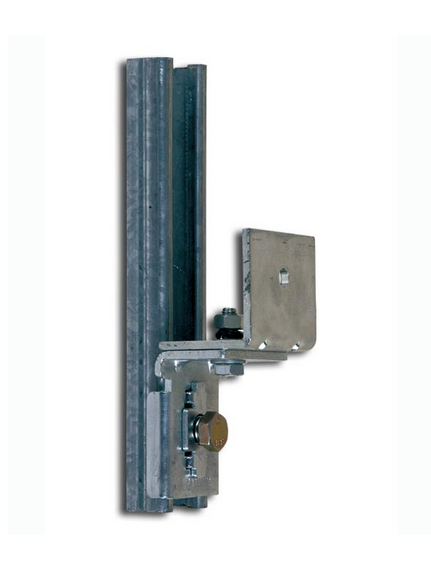

Stone Fixing System VTS-02

Stone Fixing System VTS-02

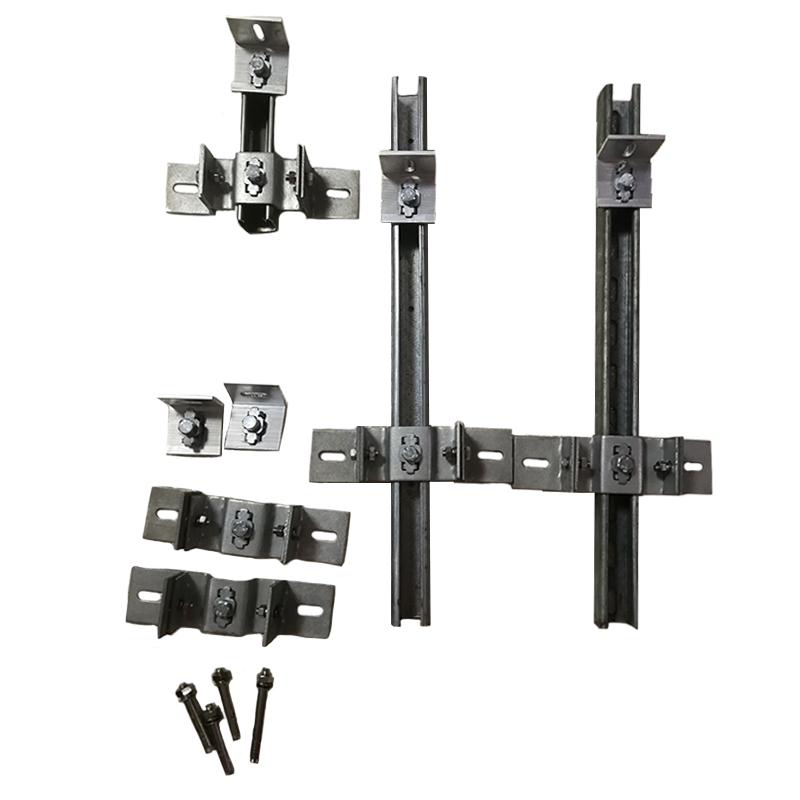

Stone Fixing System VTS-02 is used to fix wall cladding of granite, marble, travertine, ceramic and other tiles.

Material: Carbon steel, Q235B/Q345B.

Specification: 2mm*20mm, 2*30mm, 3*40mm, 3*50mmetc.

Quality: Strictly use standard carbon steel material and production management.

Benefits:

1. Suitable for concrete exterior wall frame or interior brick / concrete wall.

     Directly fixed into walls with anchors.
2. Horizontal joints installation.

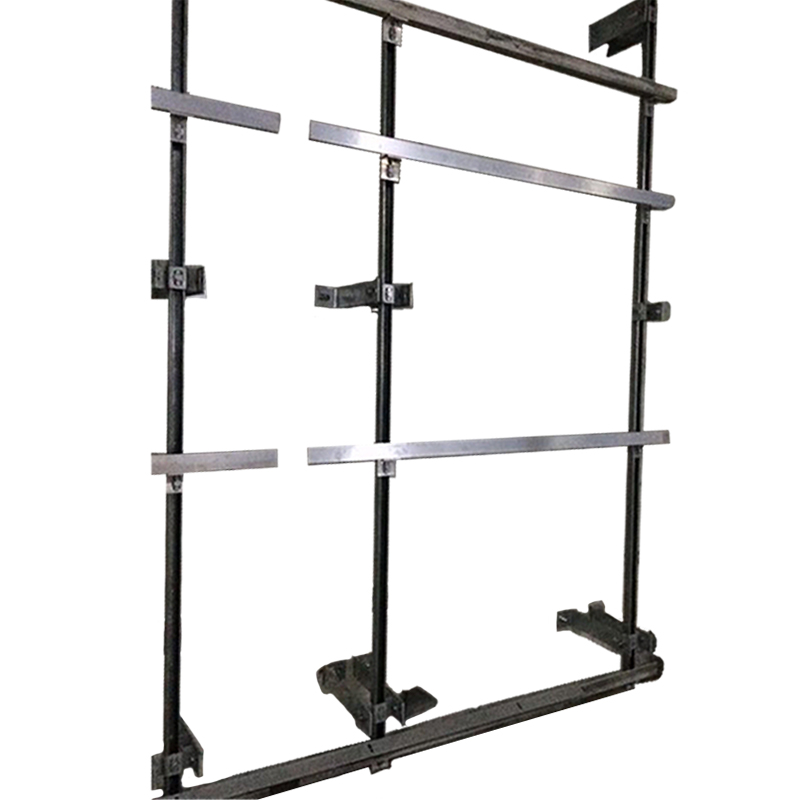

     The rail acts as main structure of the system, use other anchors to connect to undercut anchors which are fixed in the back side of stone panel, restraining against wind suction and pressure.
3. No weld or adhesive is needed in the system.

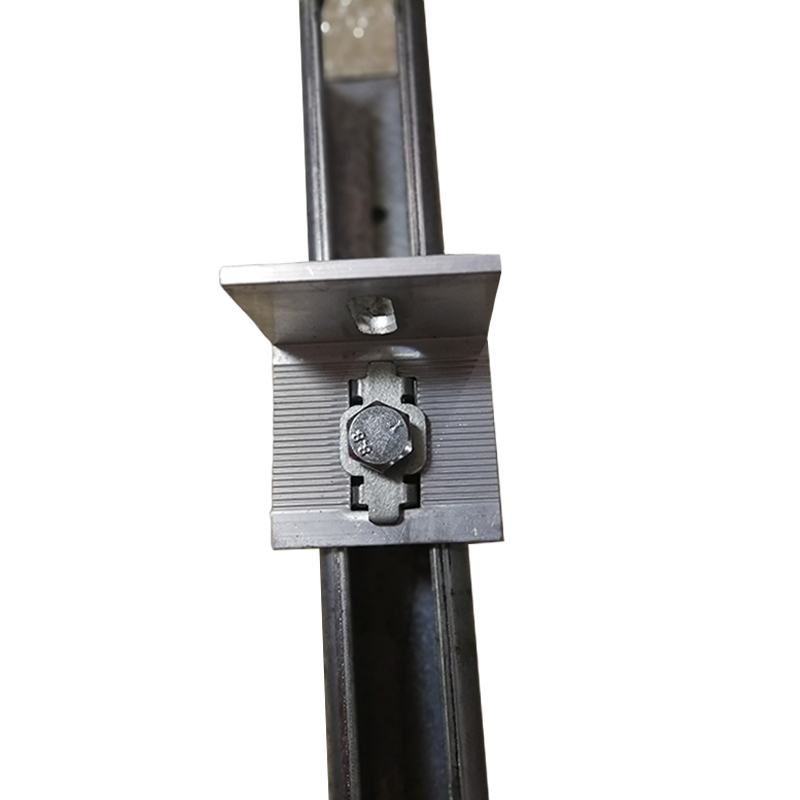

4. Three dimension adjustability.

     Allows quick and easy installation to restrain against wind pressure and quake-proof.
